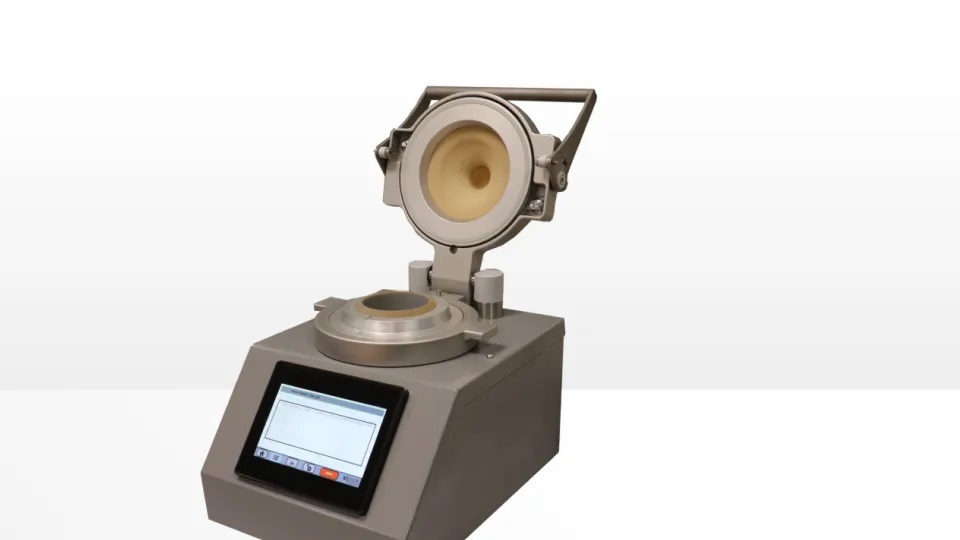

The Oxipack Container Closure Integrity Tester (CCIT) is a high-precision leak testing solution tailored for the pharmaceutical and biological industries. Its advanced design allows it to adapt to a wide range of container types, such as vials, ampoules, and bottles, without the need to change the entire test chamber. This flexibility leads to faster, more efficient testing.

The CCIT is distinguished by its high accuracy in leak inspection, utilizing a flexible, FDA-approved membrane that conforms to various container shapes. It delivers rapid performance, with a user-friendly touchscreen that provides a clear overview of settings and test results. Measuring leaks in pharmaceutical bottles via the vacuum decay method (ASTM F2338), the CCIT is an accurate, non-destructive, and straightforward solution for ensuring product integrity in sensitive industries.

Features

High-precision vacuum decay method (ASTM F2338).

Suitable for pharmaceutical containers like vials and ampoules.

User-friendly touchscreen interface.

Benefits

Ideal for sensitive pharmaceutical products.

No need to change test chamber for different containers.

Fast and accurate leak detection.

Technical Specifications

Dimensions and Weight: 4[3[35PPL x W x H 20 KG

Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber, Accura Xtreme

Power Supply: 230V 50/60HZ

Air Supply: 55 – 8 bar

Compliance and IP Rating: CE IP20

Size Measuring Chamber: Up to 500 ml Vials

Leak Detection Method: ASTM F2338

Minimum Leakage: < 0,035 cm3/min

Connections: USB/Ethernet export, 24VDC logic (free programmable)

Packaging Type and Size: Vial, Ampoule, Bottle

Options: IOT Data, Barcode scanner, Printer, Line Numbers

Features: Non-destructive, accurate, easy to operate, direct result, robust design
